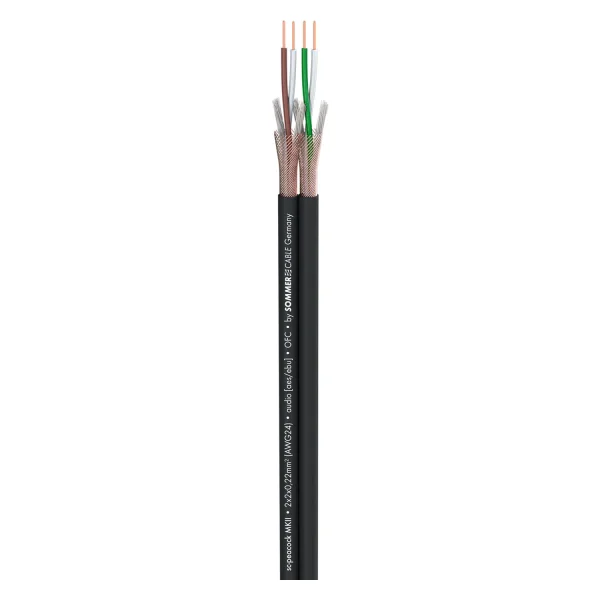

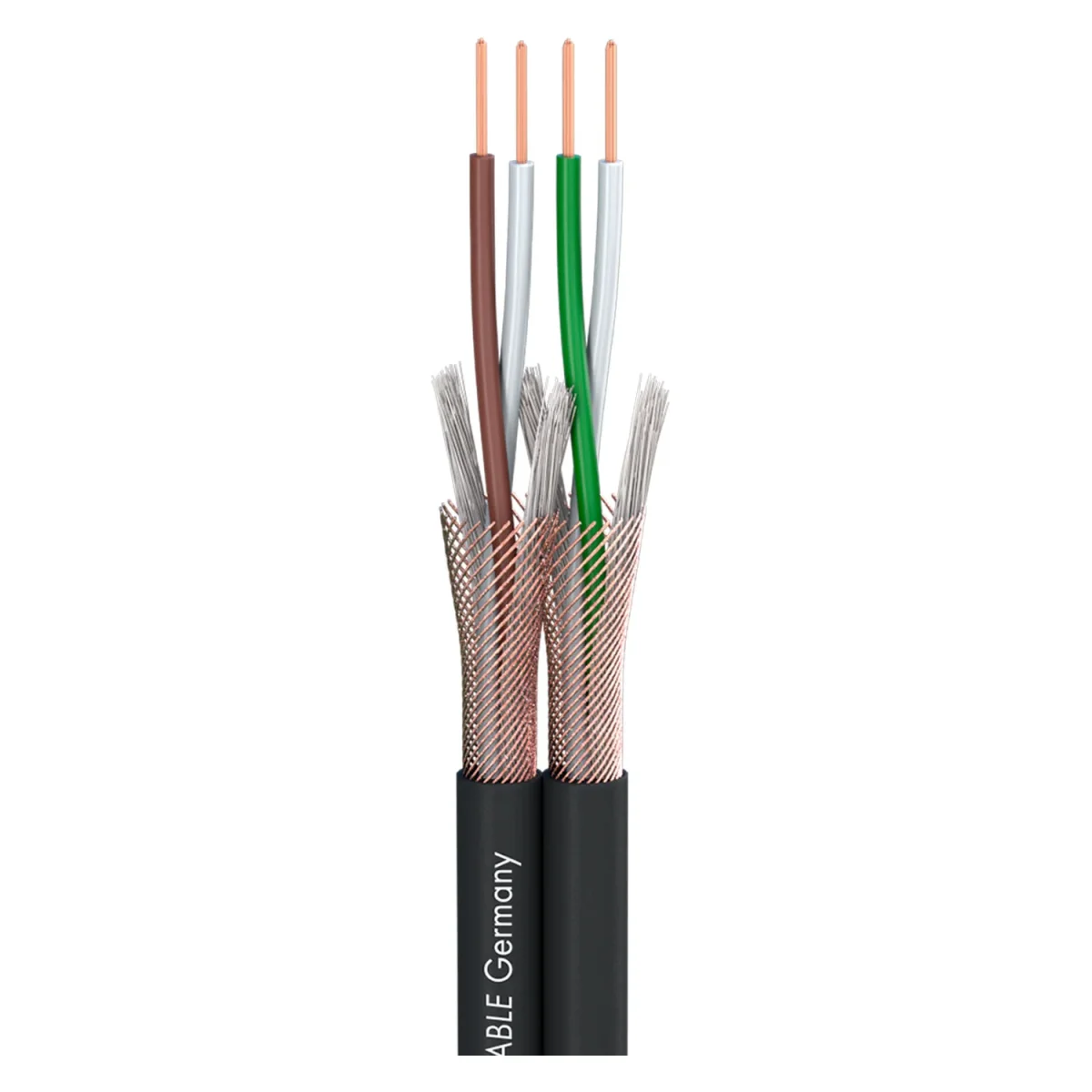

PEACOCK Zwill.-Mikrofonk. / sw
Patch- & Mikrofonkabel SC-Peacock MKII; DMX: 2 x 0,22 mm²; S-PVC; 9,2 x 4,5 mm in bewährter Sorglos-Qualität hier online bestellen. 30% Rabatt auf Versandkosten (EU-weit). Bühne / live, Studio / Broadcast, Installation
| EAN/GTIN | 4049371000512 |
| Hersteller-Nr. | 200-0551 |
| Hersteller | Sommer cable |
Zwei Freunde müssen wir sein...
und in zwei Stecker müssen wir rein. Oder in drei – oder gleich in vier. Mit diesem Kabel kann man viel anstellen. Aber in erster Linie dient es als Stereoleitung für Mikrofone oder zur Erstellung von Cinch- und Y-Patchkabeln. Jede dieser Leitungen ist einzeln mit einem dichten Spiralwendel von 95 % geschirmt und jederzeit voneinander trennbar. Die einzelne Leitung passt in jeden Klinken-, XLR- und Cinchstecker.
Vorteile:
- Hochflexibel durch die Verwendung eines kälteresistenten und weichen PVC-Mantels
- Äußerst flexibel einsetzbar, da die einzelnen Leitungen jederzeit voneinander getrennt werden können.
Anwendung:
- Verdrahtung von Stereo-Mikrofonen
- Konfektionierung von Insertkabeln
| Eigenschaften | Analog, Digital 110 Ω AES / EBU, OFC hochreines Kupfer |
| Einsatzgebiet | Bühne / live, Installation, Studio / Broadcast |
| Anwendung | Patch- & Mikrofonkabel |
| Farbe | schwarz |
| Signalübertragung | symmetrisch |

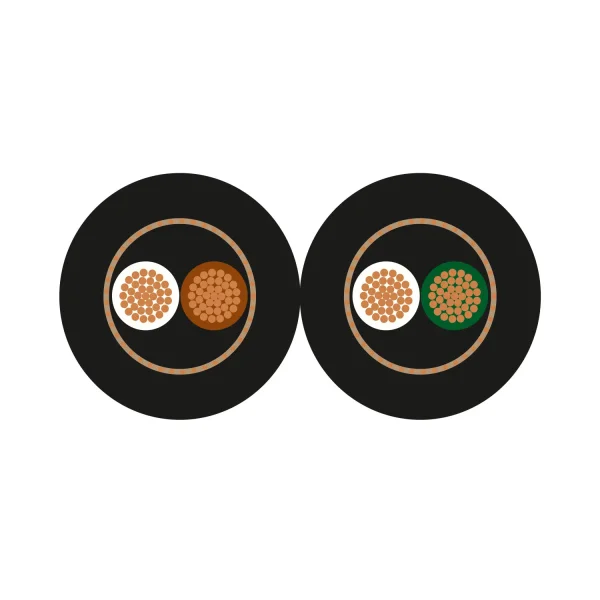

| Aufbau | [2(2LI2Y0,22mm²)DY]Y |
| Mantelmaterial | S-PVC |
| Kanalanzahl (AES/EBU, DMX) | 2 |
| Innenleiter | 2 |
| Innenleiter (AES/EBU, DMX) | 2 |
| Innenleiter (AES/EBU, DMX) [mm²] | 0,22 |
| Innenleiter (AES/EBU, DMX) [sqin] | 0.0003 |
| Innenleiter Ø (AES/EBU, DMX) [mm] | 0,53 |
| Innenleiter Ø (AES/EBU, DMX) ["] | 0.0209 |
| AWG (AES/EBU, DMX) | 24 |
| Abschirmung | Cu-Spiralwendel |
| Bedeckung, opt. [%] | 95 |
| Cu-Litzen (AES/EBU, DMX) | 28 |
| Cu-Litze Ø (AES/EBU, DMX) [mm] | 0,10 |
| Cu-Litze Ø (AES/EBU, DMX) ["] | 0.0039 |
| Leiterisolationsmaterial | Foam / Skin-PE, Foam PE |
| Leiterisolation Ø [mm] | 1,30 |
| Leiterisolation Ø ["] | 0.0512 |
| Gewicht bei 1 m [g] | 53,6 |
| Gewicht bei 1000 ft [lbs] | 36.0683 |
| UV-Beständig | Ja |
| Brandlast je m [kWh] | 0,18 |
| Bauform | Zwilling |
| Aufmachung, VPE | 100 m Rolle |
| Temperatur min. [°C] | -25, -30 |
| Temperatur max. [°C] | 70, 80 |
| Breite [mm] | 9,2 |
| Breite ["] | 0.3622 |
| Höhe [mm] | 4,5 |
| Höhe ["] | 0.1772 |
| Kapazität Ader/Ader bei 1m (AES/EBU, DMX) [pF] | 70 |
| Kapazität Ader/Ader bei 1 ft. (AES/EBU, DMX) [pF] | 21.336 |
| Kapazität Ader/Schirm bei 1m (AES/EBU, DMX) [pF] | 125 |
| Kapazität Ader/Schirm bei 1 ft. (AES/EBU, DMX) [pF] | 38.1 |
| Wellenwiderstand [Ω] | 110 |
| Isolationswiderstand bei 1 km [GΩ] | 0,5 |
| Isolationswiderstand bei 1000 feet [GΩ] | 0.1524 |
| Isolationswiderstand bei 1 km (AES/EBU, DMX) [GΩ] | 0,5 |
| Isolationswiderstand bei 1000 feet (AES/EBU, DMX) [GΩ] | 0.1524 |
| Leiterwiderstand bei 1 km [Ω] | 90, 92,5 |
| Leiterwiderstand bei 1000 ft. [Ω] | 27.432, 28.194 |
| Schirmwiderstand bei 1 km [Ω] | 36 |
| Schirmwiderstand bei 1000 ft. [Ω] | 10.9728 |
| BPVo-Euroklasse | Fca |
Keine Maßangaben verfügbar.
